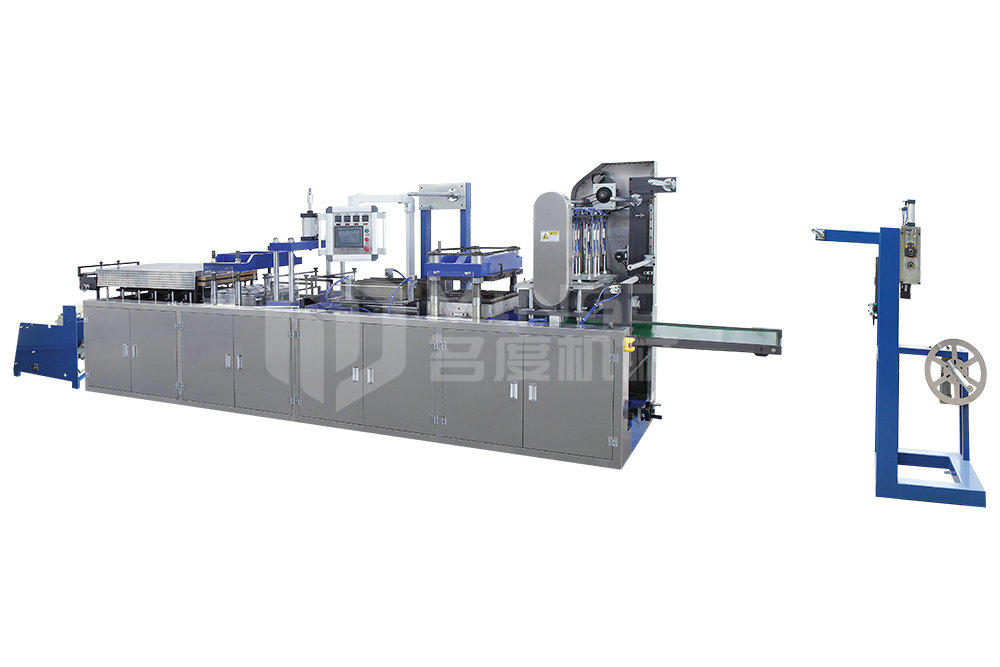

MODEL-450/700 熱成型機(激光刀沖切)

MODEL-450/700

AUTOMATIC THERMOFORMING MACHINE (LASER CUTTING)
熱成型機(激光刀沖切)

產品簡介 / Introduction

Model-450/700 熱成型機是我司根據市場及客戶的需求而研發的新型機器。該機是一種多工位的自動機械，具有同步完成成型，沖孔，沖切，從而得到最終的塑料制品。因此大大降低了勞動力和生產成本的投入，提高了工作效率。而且用途廣泛，可應用于五金、食品、藥品、化妝品等PS/PET/PVC塑料制品的生產。

Model-450/700 thermoforming machine is a new type of machine developed by our company according to the market and customer's demand. The machineis a kind of muli-station automatic machine. which has the synchronouscompleteforming.punching, and cuting & stacking, so easyto get the end plastic products. Therefore, the input of labor and the cost of production is greatly reduced, and the work efficiency is much more improved.It can be applied to metal, food,medicine, cosmetics and other PS/PET/PVC/PLA plastic products.

主要特點 / Main Feature:

采用機械手堆垛，提高效益，較少勞動成本；
采用激光刀裝置，較少模具成本，防止小訂單流失；
結構緊湊，運行平穩，操作簡單，維護方便；
伺服調整，人機觸摸屏界面；
行程任意可調，模具更換簡便；
可據用戶要求設計模具；

Stacking with robots improves efficiency and reduces labor cost.
Laser knife device, less mold cost, to prevent the loss of small orders.
Compact structure, stable operation, simple operation, convenient maintenance;
Servo adjustment, interface touching screen;
Adjustable moving-trip, mould replacement is simple;

性能技術參數 / Performance technical parameters

型號	Model	MODEL-450/700
適用板材	Suitable Sheet	PLA, PET, PVC, PS
最大成型面積	Largest Forming Area	450×700mm
最大成型寬度	Maximum Forming Width	740mm
最大成型深度	Maximum Depth	80mm
整機功率	Power	40kw
工作氣壓	Air Pressure	0.6-0.8Mpa
生產速度	Production rate	15-30模/分鐘 (die /min)
片材厚度	Thickness of Sheet Material	0.10-1.0mm
整機重量	Weight	4800kgs
占地尺寸	Floor space	10×2.8×2m(L×W×H)
